Product Information

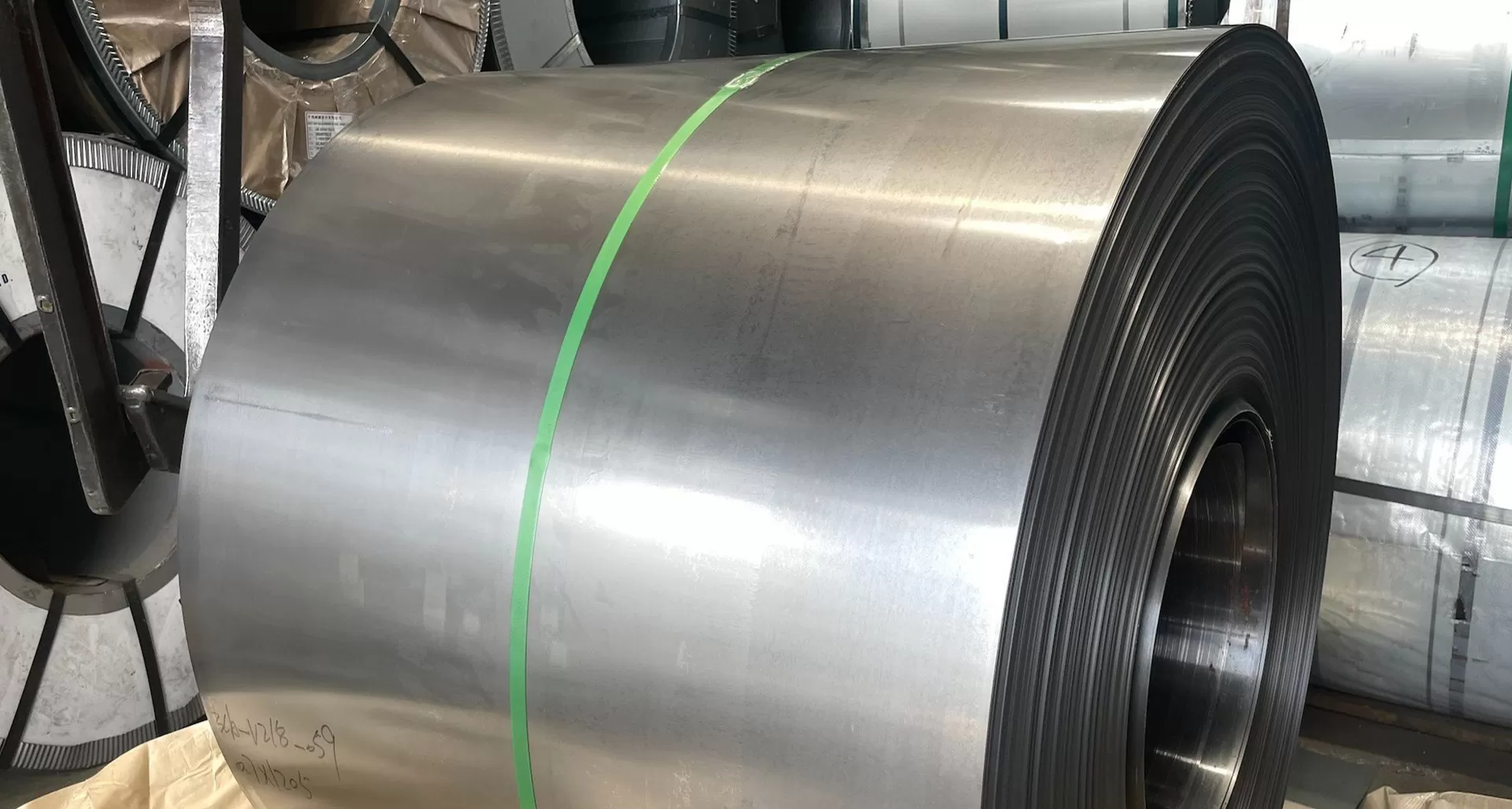

2205 and 2507 stainless steel coils are classified as duplex stainless steels, which combine the beneficial properties of both austenitic and ferritic stainless steels. These grades offer superior strength, excellent resistance to corrosion, and enhanced durability, making them ideal for demanding environments, particularly those involving exposure to harsh chemicals or marine conditions.



Available in a variety of surface finishes, 2205/2507 stainless steel coils provide versatility in both functional and aesthetic applications. These finishes range from mill finishes for industrial use to polished surfaces suitable for decorative and architectural purposes. CaribeSteel is proud to have exported these high-performance stainless steel coils to over 80 countries, reflecting their global reputation for reliability and quality in industries such as oil and gas, chemical processing, and desalination plants. The widespread adoption of these duplex grades highlights their importance in applications where both strength and corrosion resistance are essential.

Detail

Product Name

2205/2507 Stainless Steel Coil

Equivalent Grade

2205: AISI 2205, UNS S32205, SAE 2205, DIN 1.4462, SUS 2205, X2CrNiMoN22-5-3

2507:  AISI 2507, UNS S32750, SAE 2507, DIN 1.4410, SUS 2507, X2CrNiMoN25-7-4

Standard

GB, AISI, ASTM, DIN, EN, JIS

Process

Hot Rolled, Cold Rolled

Sizes

Thickness: 0.1-16mm, Width: 600-2000mm

Surface Treatment

NO.1, 2B, NO.4, BA, HL, Mirror

Inspection

SGS, TUV, BV, ABS, LR etc.

Packing

Wooden Box, Wooden Pallet, Iron Frame

Application

Oil&Gas, Petroleum, Vessels, Ship Building, Water Treatment And Environmental Protection etc.

Specification

Coil Of Rolling Specification

Thickness/Width

900mm

1000mm

1219mm

1500mm

1800mm

2000mm

0.3-0.5mm

0.6-0.7mm

0.7-0.8mm

0.8-0.9mm

1-1.2mm

1.5-2mm

2.5-3mm

special

special

special

special

special

special

Processing Category











Hot Forming



When hot forming is necessary, the work piece should be uniformly heated to a temperature range of 1750°F to 2250°F (950°C to 1230°C). At these elevated temperatures, duplex stainless steel becomes significantly softer and more malleable, allowing for easier shaping and forming without compromising its structural integrity. The material’s ductility at these temperatures facilitates a wide range of hot forming operations, ensuring that complex shapes and large components can be manufactured with relative ease.However, to preserve its mechanical properties, it is important to follow proper cooling procedures after hot forming, such as rapid quenching, to prevent issues like carbide precipitation or phase imbalance. This ensures that the duplex stainless steel retains its high strength, excellent corrosion resistance, and long-term durability, making it ideal for applications in industries such as petrochemical, offshore, and construction, where both mechanical performance and corrosion resistance are essential.











Cold Forming



2205 and 2507 duplex stainless steel coils can be easily cold formed using equipment typically used for working with stainless steels. However, due to the material's high strength and rapid work hardening characteristics, significantly greater force is required compared to austenitic stainless steels. This increased strength means that specialized tools and machinery with higher capacity are often necessary to achieve successful cold forming.While the material is highly formable, the rapid work hardening also enhances its mechanical properties during the forming process, providing greater toughness and resistance to deformation. This makes duplex stainless steel ideal for applications where both structural strength and corrosion resistance are critical, such as in chemical processing, oil and gas, and marine environments. It's important to plan for the additional force needed to ensure efficient processing and to prevent wear on equipment, while also maintaining the material's superior performance characteristics.





Welding





The material can be easily welded using most standard welding techniques. Its compatibility with a wide range of welding processes ensures versatility in fabrication and assembly. Whether employing methods such as MIG (Metal Inert Gas), TIG (Tungsten Inert Gas), or stick welding, the material responds well, allowing for strong and reliable joints. This ease of welding enhances its suitability for various applications, from structural components to intricate designs, making it a flexible choice for many industrial and construction projects.

Chemical Properties



C

Mn

P

S

Si

Cr

Ni

Mo

N

Cu

2205

0.03

2.00

0.03

0.02

1.00

22.00-23.00

4.50-6.50

3.00-5.00

0.14-0.20

/

2507

0.03

1.20

0.035

0.02

0.80

24.00-26.00

6.00-8.00

3.00-5.00

0.24-0.32

0.50

Mechanical Properties



Tensile Strength (min)

Yield Strength (min)

Elongation

Hardness, max



ksi

Mpa

ksi

Mpa

/

Brinell.HBW

Rockwell

2205

95

655

65

450

25

293

31HRC

2507

116

795

80

550

15

310

32HRC

Surface Detail

NO.1

The NO.1 surface is achieved through heat treatment and pickling after hot rolling. It has a silver-white, matte appearance with a subtle sheen. This surface finish is ideal for applications where heat and corrosion resistance are crucial, but surface brightness is not a priority. It is commonly used in industries such as industrial storage tanks, chemical processing plants, and other environments that demand durability and resistance to harsh conditions.

2D

The 2D surface finish is produced through heat treatment and pickling after cold rolling, resulting in a silver-white appearance with a smoother yet matte texture. This surface is widely used in applications that require both durability and a refined appearance. Common uses include petrochemical production equipment, automotive parts, building materials, and water pipes, where strength and corrosion resistance are essential, but a highly polished surface is not necessary.



2B



Following the 2D treatment, the material undergoes a final light cold rolling process using a polishing roller to achieve a subtle gloss. The resulting surface is smooth, bright, and can be easily re-polished to enhance its shine further. This finish is commonly used in applications such as building materials and tableware, where an aesthetically appealing and easy-to-maintain surface is important.



NO.4



The NO.4 finish is achieved by grinding with a belt of grit size 150-180, resulting in a surface with improved gloss, finer lines, and more refined stripes compared to the rougher NO.3 finish typically used for polished and sanded stainless steel surfaces. This finish is widely applied in industries such as food processing equipment, household appliances, and medical equipment, where a smooth, aesthetically pleasing surface with enhanced durability is required.



BA



The BA (Bright Annealed) surface is produced through cold rolling and de-scaling, resulting in an excellent surface gloss and high reflectivity. Its extremely smooth finish makes it ideal for additional finishing processes like mirror polishing and chrome plating. Due to its superior appearance and durability, the BA surface is commonly used in applications such as catering equipment, where both functionality and aesthetic appeal are important.



HL



The HL (Hairline) finish is achieved by grinding with a polishing abrasive belt of suitable grit size (150-320 mesh), resulting in distinct, straight stripes on the surface. This finish provides an attractive appearance with a good texture, where scratches are less visible. It is known for its durability and wear resistance. Common applications for the HL finish include building decoration, elevators, and vehicle parts, where a stylish and resilient surface is required.



Mirror



The Mirror finish is achieved by polishing with progressively finer abrasives and extensively buffing the surface until all scratches from initial grinding are eliminated. This process results in the highest level of reflectivity. It is primarily used for both interior and exterior decorative materials in automobiles and buildings, where a high-gloss, reflective surface is desired.
