Thickness | Outer Diameter | Process Type | Width | Length | Qty | Price |
---|---|---|---|---|---|---|
This table is our current stock table. If you need customized products, please send an inquiry directly |

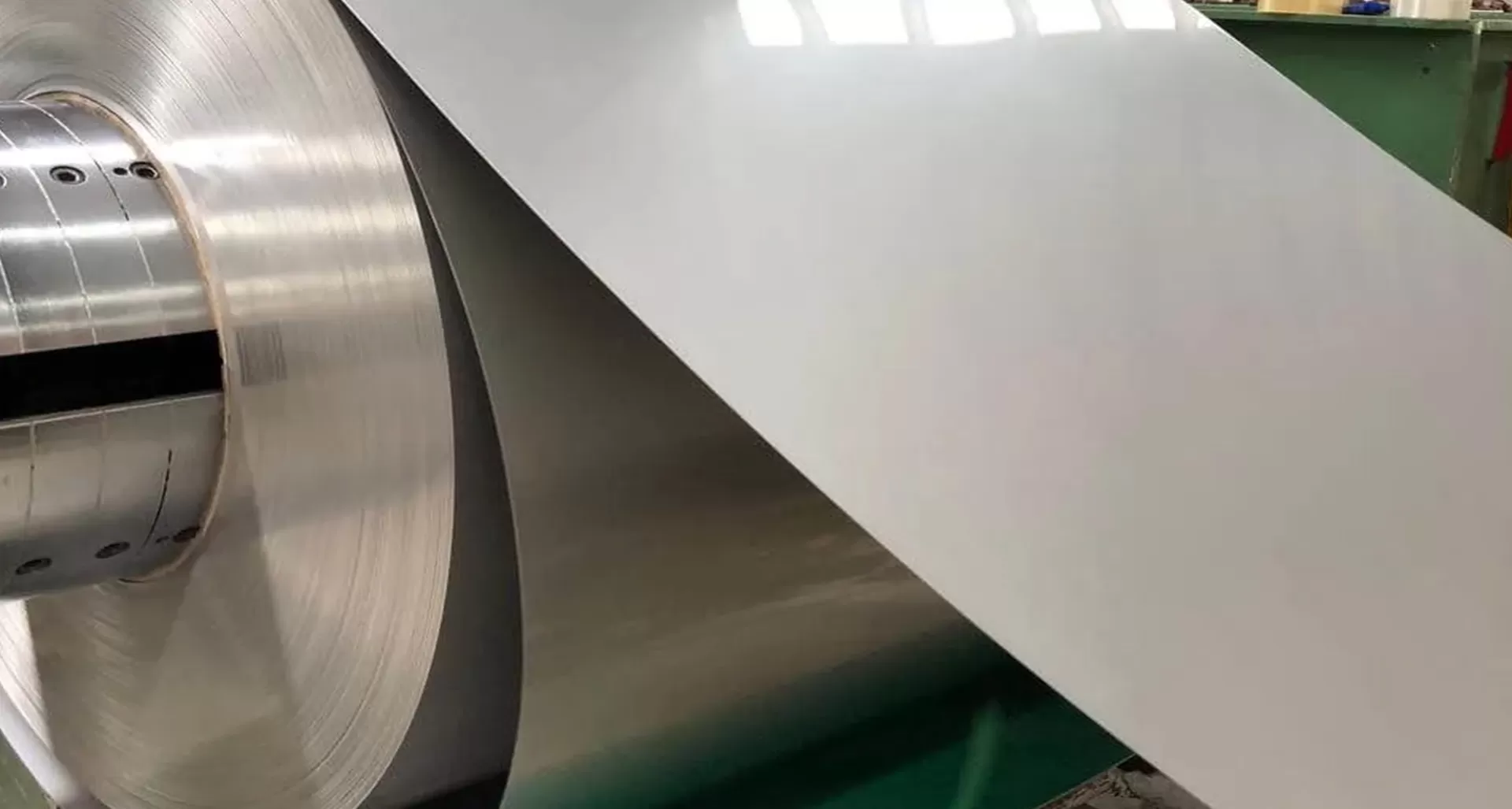

304, 304L, and 304H stainless steel coils are among the most widely utilized grades of austenitic stainless steel. Renowned for their superior strength, excellent corrosion resistance, and exceptional formability, these grades outperform many other types of stainless steel in demanding environments. The 304 family is particularly valued for its versatility, making it a preferred material in industries where durability and reliability are critical. These steel coils are frequently employed in sectors such as oil and gas, chemical processing, power generation, and petrochemical industries, where they face harsh conditions like exposure to corrosive substances and extreme temperatures. Their ability to maintain structural integrity and resist wear makes them a go-to choice for applications that require high performance and long service life. Additionally, the low-carbon variant (304L) is ideal for welding applications, while 304H, with its higher carbon content, offers better heat resistance, further expanding their range of industrial uses.
Product Name |
304/304L/304H Stainless Steel Coil |
Equivalent Grade |
304: AISI 304, UNS S30400, SAE 304, DIN 1.4301, SUS 304, X5CrNi18-10 |
304L: AISI 304L, UNS S30403, SAE 304L, DIN 1.4306, SUS 304L, X2CrNi19-11 |
|
304H: AISI 304H, UNS S30409, SAE 304H, DIN 1.4948, SUS 304H, X6CrNi18-10 |
|
Standard |
GB, AISI, ASTM, DIN, EN, JIS |
Process |
Hot Rolled, Cold Rolled |
Sizes |
Thickness: 0.1-16mm, Width: 600-2000mm |
Surface Treatment |
NO.1, 2B, NO.4, BA, HL, Mirror |
Inspection |
SGS, TUV, BV, ABS, LR etc. |
Application |
Oil&Gas, Petroleum, Vessels, Ship Building, Water Treatment And Environmental Protection etc. |
Coil Of Rolling Specification |
||||||
Thickness/Width |
900mm |
1000mm |
1219mm |
1500mm |
1800mm |
2000mm |
0.3-0.5mm |
√ |
√ |
√ |
√ |
√ |
√ |
0.6-0.7mm |
√ |
√ |
√ |
√ |
√ |
√ |
0.7-0.8mm |
√ |
√ |
√ |
√ |
√ |
√ |
0.8-0.9mm |
√ |
√ |
√ |
√ |
√ |
√ |
1-1.2mm |
√ |
√ |
√ |
√ |
√ |
√ |
1.5-2mm |
√ |
√ |
√ |
√ |
√ |
√ |
2.5-3mm |
special |
special |
special |
special |
special |
special |
Hot Forming
|
To achieve optimal corrosion resistance, the material should be annealed at a minimum temperature of 1900°F (1038°C). After the hot working process, it is crucial to rapidly cool the material using water quenching or alternative rapid cooling methods. This heat treatment process helps to stabilize the material's micro-structure, enhancing its ability to resist corrosion and ensuring its durability in harsh environments. Proper annealing and cooling are essential for maximizing the material's performance and longevity, making it suitable for applications where corrosion resistance is critical. |
Cold Forming
|
The material exhibits high ductility and can be easily formed into various shapes. During cold working processes, the strength and hardness of the alloy are increased, which can also result in a slight magnetic property. This enhancement in mechanical properties makes the material suitable for applications requiring greater durability and resistance to deformation. However, the increased hardness and strength achieved through cold working may also introduce a minimal level of magnetism, which is important to consider depending on the specific application requirements. |
Welding
|
The material can be easily welded using most standard welding techniques. Its compatibility with a wide range of welding processes ensures versatility in fabrication and assembly. Whether employing methods such as MIG (Metal Inert Gas), TIG (Tungsten Inert Gas), or stick welding, the material responds well, allowing for strong and reliable joints. This ease of welding enhances its suitability for various applications, from structural components to intricate designs, making it a flexible choice for many industrial and construction projects. |
|
C |
Mn |
P |
S |
Si |
Cr |
Ni |
Mo |
N |
Cu |
304 |
0.07 |
2.00 |
0.045 |
0.03 |
0.75 |
17.50-19.50 |
8.00-10.5 |
/ |
0.10 |
/ |
304L |
0.03 |
2.00 |
0.045 |
0.03 |
0.75 |
17.50-19.50 |
8.00-12.00 |
/ |
0.10 |
/ |
304H |
0.10 |
2.00 |
0.045 |
0.03 |
0.75 |
17.50-19.50 |
8.00-10.5 |
/ |
0.10 |
/ |
|
Tensile Strength (min) |
Yield Strength (min) |
Elongation |
Hardness, max |
|||
|
ksi |
Mpa |
ksi |
Mpa |
/ |
Brinell.HBW |
Rockwell |
304 |
75 |
515 |
30 |
205 |
40 |
201 |
92HRBW |
304L |
70 |
485 |
25 |
170 |
40 |
201 |
92HRBW |
304H |
75 |
515 |
30 |
205 |
40 |
201 |
92HRBW |
NO.1 |
The NO.1 surface is achieved through heat treatment and pickling after hot rolling. It has a silver-white, matte appearance with a subtle sheen. This surface finish is ideal for applications where heat and corrosion resistance are crucial, but surface brightness is not a priority. It is commonly used in industries such as industrial storage tanks, chemical processing plants, and other environments that demand durability and resistance to harsh conditions. |
2D |
The 2D surface finish is produced through heat treatment and pickling after cold rolling, resulting in a silver-white appearance with a smoother yet matte texture. This surface is widely used in applications that require both durability and a refined appearance. Common uses include petrochemical production equipment, automotive parts, building materials, and water pipes, where strength and corrosion resistance are essential, but a highly polished surface is not necessary. |
2B
|
Following the 2D treatment, the material undergoes a final light cold rolling process using a polishing roller to achieve a subtle gloss. The resulting surface is smooth, bright, and can be easily re-polished to enhance its shine further. This finish is commonly used in applications such as building materials and tableware, where an aesthetically appealing and easy-to-maintain surface is important. |
NO.4
|
The NO.4 finish is achieved by grinding with a belt of grit size 150-180, resulting in a surface with improved gloss, finer lines, and more refined stripes compared to the rougher NO.3 finish typically used for polished and sanded stainless steel surfaces. This finish is widely applied in industries such as food processing equipment, household appliances, and medical equipment, where a smooth, aesthetically pleasing surface with enhanced durability is required. |
BA
|
The BA (Bright Annealed) surface is produced through cold rolling and de-scaling, resulting in an excellent surface gloss and high reflectivity. Its extremely smooth finish makes it ideal for additional finishing processes like mirror polishing and chrome plating. Due to its superior appearance and durability, the BA surface is commonly used in applications such as catering equipment, where both functionality and aesthetic appeal are important. |
HL
|
The HL (Hairline) finish is achieved by grinding with a polishing abrasive belt of suitable grit size (150-320 mesh), resulting in distinct, straight stripes on the surface. This finish provides an attractive appearance with a good texture, where scratches are less visible. It is known for its durability and wear resistance. Common applications for the HL finish include building decoration, elevators, and vehicle parts, where a stylish and resilient surface is required. |
Mirror
|
The Mirror finish is achieved by polishing with progressively finer abrasives and extensively buffing the surface until all scratches from initial grinding are eliminated. This process results in the highest level of reflectivity. It is primarily used for both interior and exterior decorative materials in automobiles and buildings, where a high-gloss, reflective surface is desired. |
