Product Information

420 and 430 stainless steel coils provide moderate resistance to corrosion and heat, while also exhibiting good ductility. These properties make them versatile materials suitable for various applications that require both strength and flexibility.



420 stainless steel, known for its high hardness and ability to hold a sharp edge, is often used in applications like cutlery and surgical instruments where wear resistance and hardness are important. 430 stainless steel, on the other hand, is more commonly used in decorative applications and appliances due to its good form-ability and moderate corrosion resistance.



Both grades can be easily formed into a wide range of shapes through processes such as stamping, bending, and deep drawing. Their ease of fabrication makes them ideal for creating complex components in industries like automotive, kitchenware, and household appliances. Additionally, their balanced combination of corrosion resistance, heat resistance, and ductility ensures that they perform well in various environmental conditions, offering reliability and durability in numerous industrial and consumer applications.

Detail

Product Name

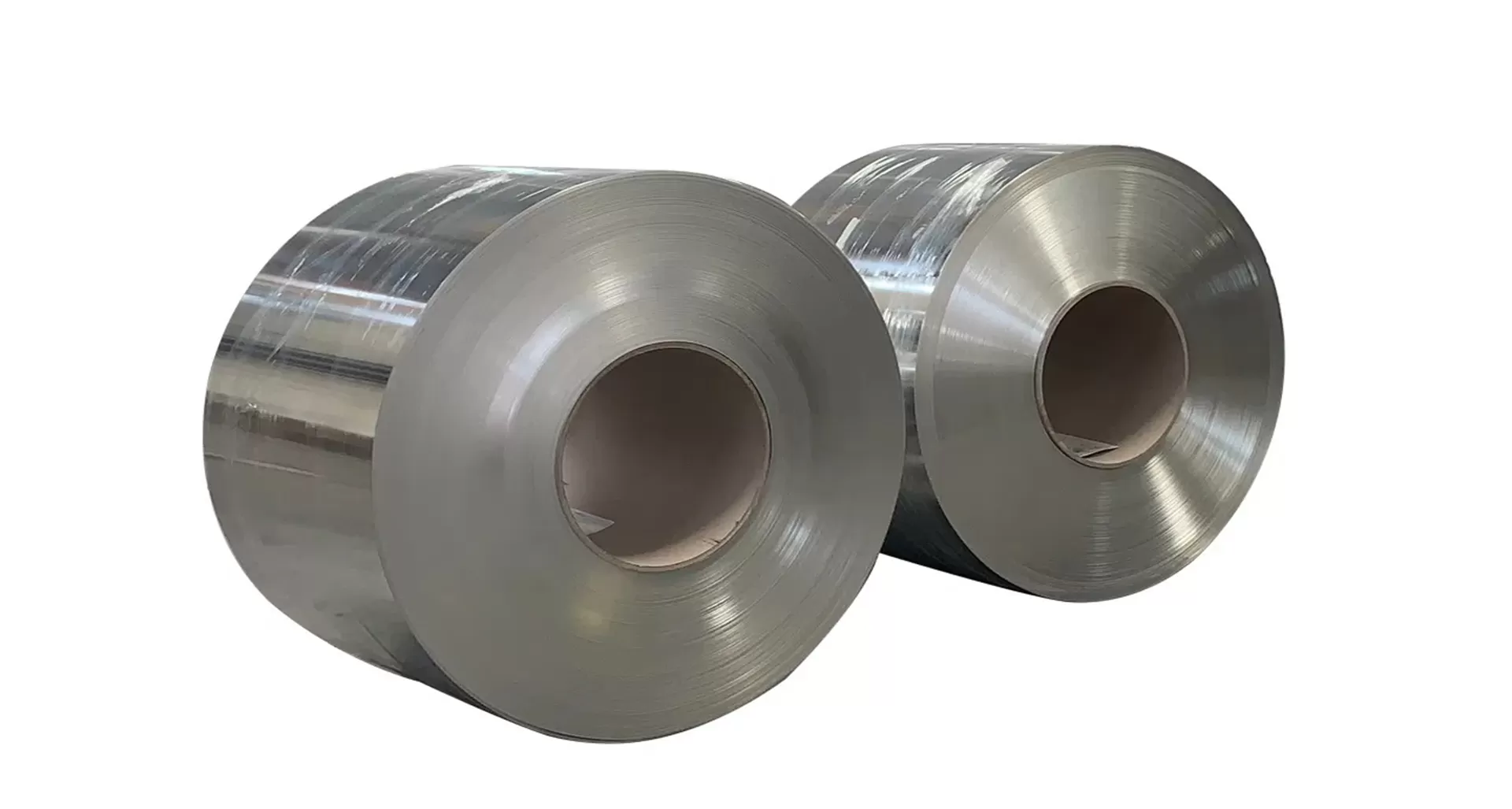

420 Stainless Steel Coil, 430 Stainless Steel Coil

Equivalent Grade

420: AISI 420, UNS S42000, SAE 420, DIN 1.4021, SUS 420, X20Cr13

430: AISI 430, UNS S43000, SAE 430, DIN 1.4016, SUS 430, X8Cr17

Standard

GB, AISI, ASTM, DIN, EN, JIS

Process

Hot Rolled, Cold Rolled

Sizes

Thickness: 0.1-16mm, Width: 600-2000mm

Surface Treatment

NO.1, 2B, NO.4, BA, HL, Mirror

Inspection

SGS, TUV, BV, ABS, LR etc.

Packing

Wooden Box, Wooden Pallet, Iron Frame

Application

Oil&Gas, Petroleum, Vessels, Ship Building, Water Treatment And Environmental Protection etc.

Specification

Coil Of Rolling Specification

Thickness/Width

900mm

1000mm

1219mm

1500mm

1800mm

2000mm

0.3-0.5mm

0.6-0.7mm

0.7-0.8mm

0.8-0.9mm

1-1.2mm

1.5-2mm

2.5-3mm

special

special

special

special

special

special

Processing Category



Hot Forming



420 and 430 stainless steels are well-suited for various forging processes, including forging, upsetting, and hot heading. These processes involve shaping the material while it is heated to elevated temperatures, which enhances its malleability and allows for the creation of complex shapes and components. 420 stainless steel, known for its high hardness and ability to maintain a sharp edge, is particularly effective in applications requiring durability and precision. Its ability to withstand the stresses of forging and hot working processes makes it ideal for producing high-strength components. 430 stainless steel, while not as hard as Type 420, still provides good ductility and corrosion resistance. It is commonly used in applications where ease of forming and cost-effectiveness are important, such as in automotive parts and household appliances. Both grades exhibit satisfactory performance during these hot working processes, ensuring that they can be shaped into various components with desirable mechanical properties. Their ability to be forged, upset, and hot headed makes them versatile choices for manufacturing applications where strength, durability, and form-ability are key considerations.



Cold Forming



The material exhibits high ductility and can be easily formed into various shapes. During cold working processes, the strength and hardness of the alloy are increased, which can also result in a slight magnetic property. This enhancement in mechanical properties makes the material suitable for applications requiring greater durability and resistance to deformation. However, the increased hardness and strength achieved through cold working may also introduce a minimal level of magnetism, which is important to consider depending on the specific application requirements.





Welding





420 and 430 stainless steel can be welded using standard industrial welding techniques commonly applied to stainless steel. To ensure optimal welding results, it is crucial to thoroughly clean the stainless steel parts to be welded, removing any grease, oil, or other surface contaminants. Proper cleaning helps to prevent defects in the weld, such as weak joints or contamination, and ensures a strong, reliable bond. Following these best practices in preparation and welding techniques ensures high-quality, durable welds suitable for a variety of applications.

Chemical Properties



C

Mn

P

S

Si

Cr

Ni

Mo

N

Cu

420

0.15

1.00

0.04

0.03

1.00

12.00-14.00

0.75

0.5

/

/

430

0.12

1.00

0.04

0.03

1.00

16.00-18.00

0.75

/

/

/

Mechanical Properties



Tensile Strength (min)

Yield Strength (min)

Elongation

Hardness, max



ksi

Mpa

ksi

Mpa

/

Brinell.HBW

Rockwell

420

100

690

/

/

15

183

95HRBW

430

65

450

30

205

22

183

95HRBW

Surface Detail

NO.1

The NO.1 surface is achieved through heat treatment and pickling after hot rolling. It has a silver-white, matte appearance with a subtle sheen. This surface finish is ideal for applications where heat and corrosion resistance are crucial, but surface brightness is not a priority. It is commonly used in industries such as industrial storage tanks, chemical processing plants, and other environments that demand durability and resistance to harsh conditions.

2D

The 2D surface finish is produced through heat treatment and pickling after cold rolling, resulting in a silver-white appearance with a smoother yet matte texture. This surface is widely used in applications that require both durability and a refined appearance. Common uses include petrochemical production equipment, automotive parts, building materials, and water pipes, where strength and corrosion resistance are essential, but a highly polished surface is not necessary.



2B



Following the 2D treatment, the material undergoes a final light cold rolling process using a polishing roller to achieve a subtle gloss. The resulting surface is smooth, bright, and can be easily re-polished to enhance its shine further. This finish is commonly used in applications such as building materials and tableware, where an aesthetically appealing and easy-to-maintain surface is important.



NO.4



The NO.4 finish is achieved by grinding with a belt of grit size 150-180, resulting in a surface with improved gloss, finer lines, and more refined stripes compared to the rougher NO.3 finish typically used for polished and sanded stainless steel surfaces. This finish is widely applied in industries such as food processing equipment, household appliances, and medical equipment, where a smooth, aesthetically pleasing surface with enhanced durability is required.



BA



The BA (Bright Annealed) surface is produced through cold rolling and de-scaling, resulting in an excellent surface gloss and high reflectivity. Its extremely smooth finish makes it ideal for additional finishing processes like mirror polishing and chrome plating. Due to its superior appearance and durability, the BA surface is commonly used in applications such as catering equipment, where both functionality and aesthetic appeal are important.



HL



The HL (Hairline) finish is achieved by grinding with a polishing abrasive belt of suitable grit size (150-320 mesh), resulting in distinct, straight stripes on the surface. This finish provides an attractive appearance with a good texture, where scratches are less visible. It is known for its durability and wear resistance. Common applications for the HL finish include building decoration, elevators, and vehicle parts, where a stylish and resilient surface is required.



Mirror



The Mirror finish is achieved by polishing with progressively finer abrasives and extensively buffing the surface until all scratches from initial grinding are eliminated. This process results in the highest level of reflectivity. It is primarily used for both interior and exterior decorative materials in automobiles and buildings, where a high-gloss, reflective surface is desired.
